Understanding the U-Shaped Rubber Batch Off Cooling Line: An Essential Tool for Rubber Processing

In the rubber manufacturing industry, maintaining product quality while increasing efficiency is a top priority. One of the essential machines that facilitate this is the U-shaped rubber batch off cooling line. This equipment plays a critical role in cooling and stacking rubber sheets before they are further processed, ensuring uniform quality and improved production efficiency.

What is a U-Shaped Rubber Batch Off Cooling Line?

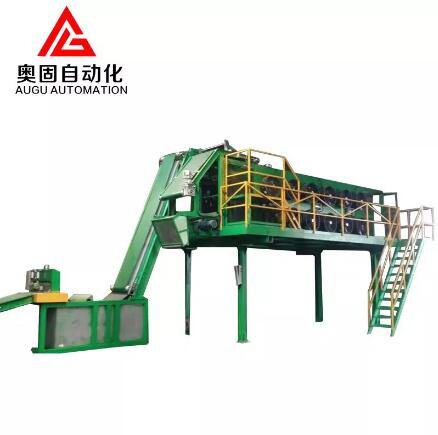

A U-shaped rubber batch off cooling line is a specialized machine used to cool rubber sheets and strips after they are calendered or extruded. As the name suggests, this machine typically follows a U-shaped path, which allows the rubber sheets to cool evenly by air or water. The cooling process is vital for maintaining the quality of the rubber material, preventing deformation, and ensuring that it is ready for subsequent processes, such as cutting or molding.

The U-shaped design is particularly effective because it maximizes space utilization and allows for a compact, efficient cooling system within a factory setting. The machine consists of several key components:

- Entry unit: Where the hot rubber sheets enter the system.

- Cooling chamber: Where the rubber is cooled by air or water sprays.

- Exit unit: Where the cooled rubber sheets are stacked or cut for further processing.

Key Benefits of a U-Shaped Rubber Batch Off Cooling Line

1. Efficient Cooling Process

The U-shaped cooling line is designed to ensure that rubber sheets cool uniformly and efficiently. The use of either air or water to cool the material depends on the type of rubber being processed and the specific needs of the production line. The U-shape design allows the rubber sheets to travel longer distances in a compact space, increasing the cooling surface area without taking up excessive floor space in the factory.

2. Enhanced Space Utilization

Factories and production plants often have limited floor space. The U-shaped design helps conserve space while still offering a long enough path for the rubber sheets to cool adequately. This compact design makes it ideal for both small and large production facilities, offering flexibility in layout.

3. Automation and Labor Savings

Modern U-shaped batch off cooling lines often come equipped with automated features such as feeding, cooling, and stacking. This reduces the need for manual labor and lowers the risk of human error. Automation also leads to increased productivity, as the machine can operate continuously, reducing downtime and improving output rates.

4. Consistent Product Quality

Uniform cooling is critical in ensuring that the rubber sheets maintain their structural integrity and do not deform. The batch off cooling line ensures that each sheet is evenly cooled, helping to prevent defects such as warping or uneven thickness. This consistency leads to higher-quality finished products and fewer rejections.

5. Customizable for Different Rubber Types

Different types of rubber have unique cooling requirements. A U-shaped rubber batch off cooling line can be customized to handle various materials, including natural rubber, synthetic rubber, and specialized rubber compounds. Whether the cooling is done using air, water, or a combination of both, the line can be adjusted to meet the specific needs of the material.

How Does the U-Shaped Batch Off Cooling Line Work?

The working process of a U-shaped rubber batch off cooling line can be broken down into several stages:

1. Feeding the Rubber: The hot rubber sheets or strips are fed into the cooling line from the calendering or extrusion machine.

2. Cooling: As the rubber moves along the U-shaped path, it passes through a cooling chamber where it is cooled by air or water. The U-shape allows the rubber to travel a longer distance without taking up too much space.

3. Drying: In water-cooled systems, a drying section is included to remove excess water from the rubber before it moves to the next stage.

4. Stacking: Once the rubber has been sufficiently cooled, it is automatically stacked or laid out for the next stage of processing.

Applications of U-Shaped Rubber Batch Off Cooling Lines

1. Tire Manufacturing

In the production of tires, batch off cooling lines are used to cool the rubber compounds before they are cut and shaped into treads or sidewalls. This cooling process ensures that the rubber maintains its form and quality during tire assembly.

2. Conveyor Belt Manufacturing

Rubber batch off cooling lines are commonly used in the production of conveyor belts, where consistent cooling is crucial to avoid defects in the final product.

3. Rubber Sheet Production

For industries that require rubber sheets for various applications, including sealing and padding, a batch off cooling line ensures that the sheets are cooled and stacked efficiently for further processing.

Conclusion

The U-shaped rubber batch off cooling line is an essential piece of equipment in rubber manufacturing, offering efficient cooling, space-saving design, and automation that leads to higher productivity. Its ability to maintain consistent product quality and handle various types of rubber makes it a vital tool in the production of tires, conveyor belts, and rubber sheets. For manufacturers looking to optimize their rubber processing line, investing in a U-shaped batch off cooling system can significantly improve output and quality.
