The role of the camera or video system in the measuring process

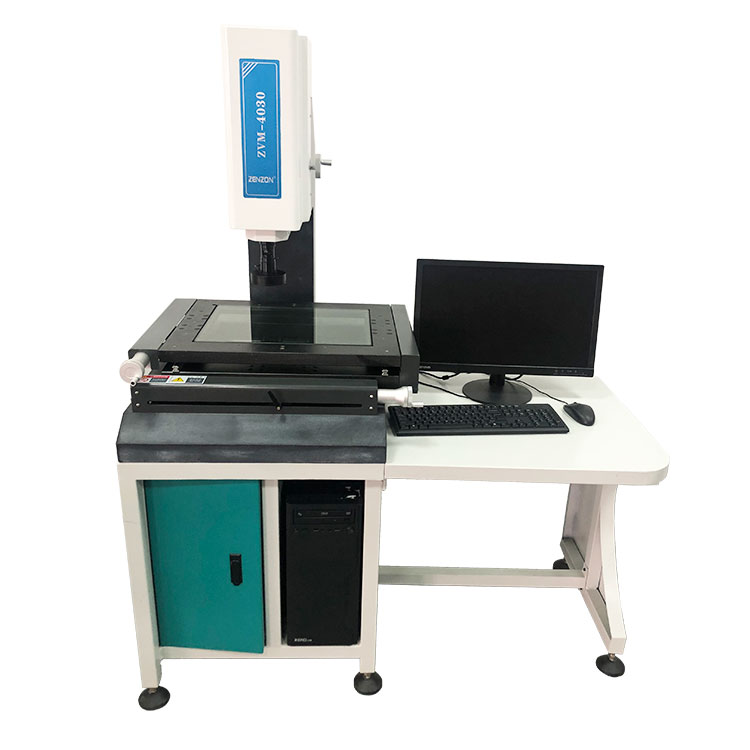

The camera or video system plays a crucial role in the measuring process of a Video Measuring Machine (VMM). Its primary function is to capture high-resolution images of the object or component being measured. Here are the key roles and functions of the camera or video system in the measuring process:

1. Image Capture: The camera captures digital images of the object in real time. These images are typically in color and high resolution, providing a detailed visual representation of the object.

2. Magnification: The camera is often equipped with a zoom lens, which allows operators to adjust the magnification level. This feature enables close examination of specific features, ensuring that even small details can be measured accurately.

3. Positioning and Focusing: The camera can be moved in the Z-axis (up and down) along a column, allowing for precise focusing on different areas of the object. This feature is crucial for capturing images of different depths within the object.

4. Illumination: The camera's performance is closely tied to the illumination system. The camera is designed to work with controlled lighting, often LED or fiber-optic, to provide even and consistent illumination on the object. Proper lighting is essential for capturing clear images.

5. Calibration: The camera system is calibrated to ensure that measurements are accurate. Calibration involves referencing a known standard or calibration artifact to set the scale and orientation of the camera's images.

6. Edge Detection: The camera's images are processed by specialized measurement software, which includes edge detection algorithms. These algorithms identify features, edges, and corners within the images, making it easier to measure specific dimensions and geometric elements.

7. Real-Time Display: The camera's live images are displayed on a computer monitor in real time. Operators use these images to position the camera and select the features to be measured.

8. Measurement: The camera's images serve as the basis for measurement. The software analyzes the images, extracts the necessary data, and performs measurements on various features of the object. This can include lengths, widths, angles, distances, and more.

9. Data Accuracy: The camera system is designed to provide highly accurate measurements, as the quality of the images directly affects the precision of the measurements.

10. Data Visualization: The images captured by the camera are used to visualize measurement results. Measurement data is displayed on the computer monitor alongside the images, allowing operators to assess the accuracy of the measurements.

In summary, the camera or video system in a Video Measuring Machine plays a central role in the measuring process by capturing high-quality images, providing accurate measurements, and facilitating the visualization of measurement results. It is a critical component that works in tandem with other components and measurement software to ensure the accuracy and precision of the dimensional and geometric measurements.
