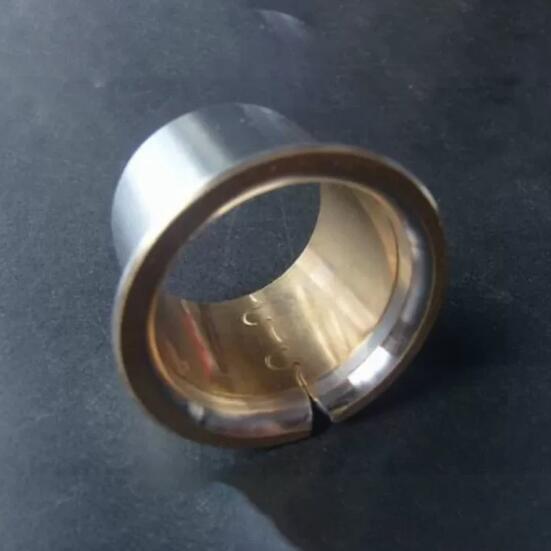

Inside the Production Process: Manufacturing Main Shaft Bi-Metal CuSn4Pb24 Flange Bearings

Main shaft bi-metal CuSn4Pb24 flange bearings are essential components in various industrial applications, providing reliable support and smooth operation for rotating machinery. Behind their performance lies a meticulous manufacturing process that combines precision engineering with metallurgical expertise. In this blog, we'll explore the intricate steps involved in producing main shaft bi-metal CuSn4Pb24 flange bearings, shedding light on the manufacturing journey from raw materials to finished products.

1. Material Selection: The manufacturing process begins with the careful selection of materials. CuSn4Pb24, a bronze alloy composed of copper (Cu), tin (Sn), and lead (Pb), is chosen for its exceptional bearing properties. High-quality raw materials are sourced from reputable suppliers to ensure consistency and reliability in the final product.

2. Metal Casting: The first step in manufacturing bi-metal CuSn4Pb24 flange bearings involves metal casting. The CuSn4Pb24 alloy is melted in a furnace and poured into molds to create rough blanks or billets of the desired shape and size. Precision casting techniques, such as centrifugal casting or continuous casting, are employed to ensure uniformity and integrity of the castings.

3. Bearing Blank Preparation: Once cast, the rough blanks undergo machining processes to achieve the desired dimensions and tolerances. This may include turning, milling, drilling, and grinding operations to shape the blanks into semi-finished bearing components. Precision machining is essential to ensure optimal fit and functionality in the final assembly.

4. Steel Backing Layer Production: In parallel, steel backing layers are manufactured separately using steel alloys selected for their strength and durability. Steel sheets are cut, stamped, or machined to the required dimensions and surface finish. The steel backing provides structural support and rigidity to the bearing, enhancing its stability and load-bearing capacity.

5. Bonding Process: The next step involves bonding the CuSn4Pb24 bearing layer to the steel backing layer to create a bi-metallic structure. Various bonding methods may be used, including sintering, diffusion bonding, or electroplating. These processes ensure a strong and durable bond between the two layers, preventing delamination and ensuring long-term performance.

6. Flange Formation: For flange bearings, the outer diameter of the bearing assembly is shaped to incorporate a flat collar or rim, known as the flange. This may involve additional machining operations or forming processes to create the flange feature. The flange serves as a retaining feature, preventing axial movement and ensuring proper positioning within the housing or mounting structure.

7. Surface Treatment: After the bearing components are assembled, they may undergo surface treatment processes to improve performance and durability. This may include heat treatment to enhance hardness and strength, as well as surface coatings or platings to provide additional corrosion resistance or lubrication properties.

8. Quality Control: Throughout the manufacturing process, stringent quality control measures are implemented to ensure the integrity and performance of the bearings. Dimensional inspections, material testing, and performance evaluations are conducted at various stages to verify compliance with specifications and industry standards.

9. Final Assembly and Packaging: Once the bearings pass quality control checks, they are assembled into finished products and prepared for packaging. Bearings may be packaged individually or in sets, depending on customer requirements and application needs. Careful handling and packaging ensure that the bearings reach end-users in pristine condition, ready for installation and use.

In conclusion, the manufacturing process for main shaft bi-metal CuSn4Pb24 flange bearings is a complex and precise endeavor that involves careful material selection, metal casting, machining, bonding, surface treatment, and quality control. By adhering to rigorous standards and employing advanced manufacturing techniques, manufacturers ensure that these bearings meet the demanding requirements of industrial machinery and equipment, providing reliable performance and longevity in critical applications.
